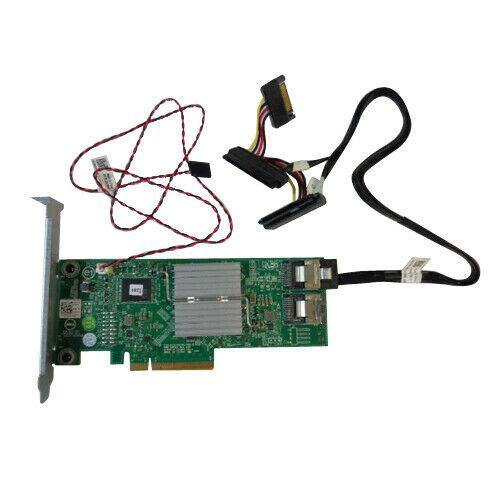

Description: Dell Perc H310 PowerEdge Server Integrated Raid Controller Card w/ Cables HV52W. Card comes with cables shown in picture - MJVMK & T3F4V. Low-cost, green SATA+SAS RAID solution for high-density servers (1U or 2U) and workstations with the flexibility to use both SATA and SAS hard drives, solid state drives, and pass through drive configurations.
Product Name - Perc H310 Integrated Controller
Product Type - SATA/SAS Controller
RAID Supported - Yes
Form Factor - Plug-in Card
RAID Levels - 0, 1, 5, 10, 50
Host Bus Type - 8 Lane, PCI Express 2.0 compliant
Data transfer rates - Up to 6Gb/s per port
SAS Controller - LSISAS2008
Connectors - Two x4 internal mini-SAS SFF8087
Max # of devices - Non-RAID: 32, RAID 0: 16 per volume, RAID 1: 2 per volume plus hot spare, RAID 5: 16 per volume, RAID 10: 16 per volume, RAID 50: 16 per volume.
Dell Part #: HV52W.
